TIG Wp-26 Gas Cooled Tungsten Argon Arc Welding Torch with Two Cable

Looking for a high-quality TIG welding torch with two cables? Our factory produces the TIG Wp-26 Gas Cooled Tungsten Argon Arc Welding Torch. Buy now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Company Profile
  • Certifications
  • FAQ
Overview

Basic Info.

Model NO.
WP 26
Cooling
Gas Cooled
Length
4m/8m
Packing
1PCS/Box
MOQ
5PCS
Transport Package
5PCS/Bag
Specification
WP26
Trademark
huarui
Origin
Changzhou, China
HS Code
85159000
Production Capacity
10000PCS/Week

Packaging & Delivery

Package Size
42.00cm * 42.00cm * 10.00cm
Package Gross Weight
4.000kg

Product Description

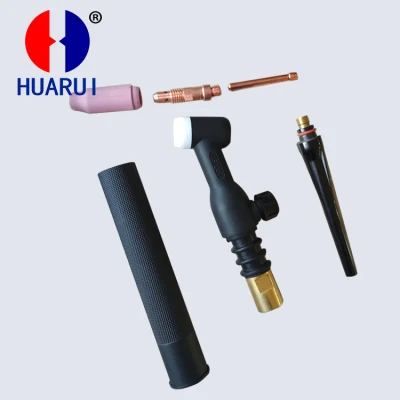

TIG Wp-26 Gas Cooled Tungsten Argon Arc Welding Torch with Two Cable
Item TIG WP-26 Gas Cooled Tungsten Argon Arc Welding Torch                                WP26-12-1/WP26-25-1, with two cable, 12ft/25ft as photo
Rating 200A DC, 160A AC, Tungsten Diameter: 0.5-3.2mm
Rear Connector M12*1, 35-50 connector, 1/4G, 7/8''-14UNF RH, 5/8''-18 UNF RH
Certification ISO9001, CCC, CE, ROHS, TUV
Packing 1set/box neutral packing, 5sets/Carton Box

Collet
10N21 Collet Dia.0.5mm
10N22 Collet Dia.1.0mm
10N23 Collet Dia.1.6mm
10N24 Collet Dia.2.4mm
10N25 Collet Dia.3.2mm
Collet Body
10N29 Collet Body Dia. 0.5mm
10N30 Collet Body Dia. 1.0mm
10N31 Collet Body Dia. 1.6mm
10N32 Collet Body Dia. 2.4mm
10N28 Collet Body Dia. 3.2mm
Alumina nozzle/ Ceramic Nozzle
10N50 Std. Ceramic Cup Dia. 6mm
10N49 Std. Ceramic Cup Dia. 8mm
10N48 Std. Ceramic Cup Dia. 10mm
10N47 Std. Ceramic Cup Dia. 11mm
10N46 Std. Ceramic Cup Dia. 13mm
10N45 Std. Ceramic Cup Dia. 16mm
10N44 Std. Ceramic Cup Dia. 19mm
Gas Lens Collet Body
45V29 Gas Lens Body Dia. 0.5mm
45V24 Gas Lens Body Dia. 1.0mm
45V25 Gas Lens Body Dia. 1.6mm
45V26 Gas Lens Body Dia. 2.4mm
45V27 Gas Lens Body Dia. 3.2mm
CONSUMABLES PARTS
18CG Heat Shield Cup Gasket
18CG20 Heat Shield Cup Gasket
54N01 Heat Shield Cup Gasket
54N63 Heat Shield Cup Gasket(Large Dia Gas Lens)
WP26 Torch body(With Gasket)
98W18 Back Cap " O " Ring
57Y02 Back Cap Long
57Y04 Back Cap Short
950 Micro Switch Bulbous Button
950F Micro Switch Flat Button
950-40 Bulbous Micro switch C/W 4mt 2 Core Cable
950-80 Bulbous Micro switch C/W 8mt 2 Core Cable
RDZ0590 Switch Boot
607663 Switch Retaining Boot
609123 Protective Neoprene Cover, 4m
609125 Protective Neoprene Cover, 8m
10N15 Handle
315071 Insulation Boot
VS-1 Valve Stem
WP-26V Torch Body With Valve
WP-26FX Flexible Torch Body
WP-26VFX Flexible Torch Body With Valve
TIG Wp-26 Gas Cooled Tungsten Argon Arc Welding Torch with Two Cable
TIG Wp-26 Gas Cooled Tungsten Argon Arc Welding Torch with Two Cable
Company Profile



Changzhou Huarui Welding & Cutting Co., LTD

Since the establishment in 1985, we have become one of the biggest manufacturers of welding
and cutting equipment and accessories in China by modern manufacturing equipmentand special
technology.
We are specialized in manufacturing MIG, TIG, PLASMA, Welding Torches and Spare
parts. With Euro connector, Lincoln connector , Miller connector and Tweco connector, we can fit
different kinds of foreign equipments.

1.MIG Welding Torch
Binzel, Bernard,Tweco,Esab,Lincoln/Tregaskiss,Panasonic/OTC, MAXI, Kemppi,Fronius,Mechafin.
2.TIG Welding Torch
WP-24, WP-9,WP-17, WP-26, WP-20, WP-18, etc.
3.Plasma Cutting Torch
Trafimet, Cebora, Panasonic/Esab
TIG Wp-26 Gas Cooled Tungsten Argon Arc Welding Torch with Two Cable
Certifications



TIG Wp-26 Gas Cooled Tungsten Argon Arc Welding Torch with Two Cable
FAQ

Q1: Can I get a samples to check the quality?

A:Sure,we can supply samples. For regular goods, the sample cost is different from the amount
you want.For our new products, there's a MOQ of the samples.
Q2: Can I put my logo on the boxes/cartons?
A: Yes, this can be made according to your requirements, but you should send us the trademark
authorization letter.
Q3: How can you guarantee your products quality ?
A: Huarui's each torch must pass the following tests before packing: Insulation resistance test,
High voltage test,Air/Water flow test, Air/Water seal test.

If there are defective items, we usually credit to our customer or replace in the next shipment.
Q4: What's the order procedure?
A: Firstly, we discuss the details together by e-mail or TM. Then we issue you a PI for your
confirmationor Trade.Assurance Order Payment Link. You will be requested to do the pre-paid
full payment before we go into the production. After we get the payment, we start to process the
order. It usually takes 5-15days if we don't have the items in stock.
